In modern manufacturing, material accuracy and process stability are essential for achieving consistent product quality. Industries such as wire and cable, packaging, paper, foil, textile and converting rely heavily on the precise alignment of moving webs. Even small deviations in lateral position can cause misprints, uneven coatings, tape gaps, material wrinkles, edge damage and significant waste.

Web guide systems play a crucial role in maintaining alignment and material flow. They ensure that tape, foil, film, textile, paper or coated cable remains centred throughout the production process. With decades of expertise in motion control and heavy-duty industrial solutions, Euro Hübner Benelux B.V. supports manufacturers with high-precision web guide systems and complementary technologies like force measurement systems, encoders and tension control devices.

This article explains how web guide systems work, why they are essential in production environments, and how they help significantly reduce material waste while improving product quality.

Why web guiding matters in industrial production

Any process involving continuous material movement is sensitive to misalignment. As the web travels through rollers, guides, applicators and printing units, even a slight lateral shift can lead to:

  • Misaligned insulation layers
  • Taping or wrapping overlap errors
  • Skewed coatings or markings
  • Uneven winding
  • Wasted material and downtime
  • Increased machine wear over time

These issues are especially critical in industries like the wire and cable industry, where precision wrapping, taping, or coating requires stable lateral positioning.

Web guide systems prevent these issues by continuously monitoring the material’s position and correcting any deviation in real time.

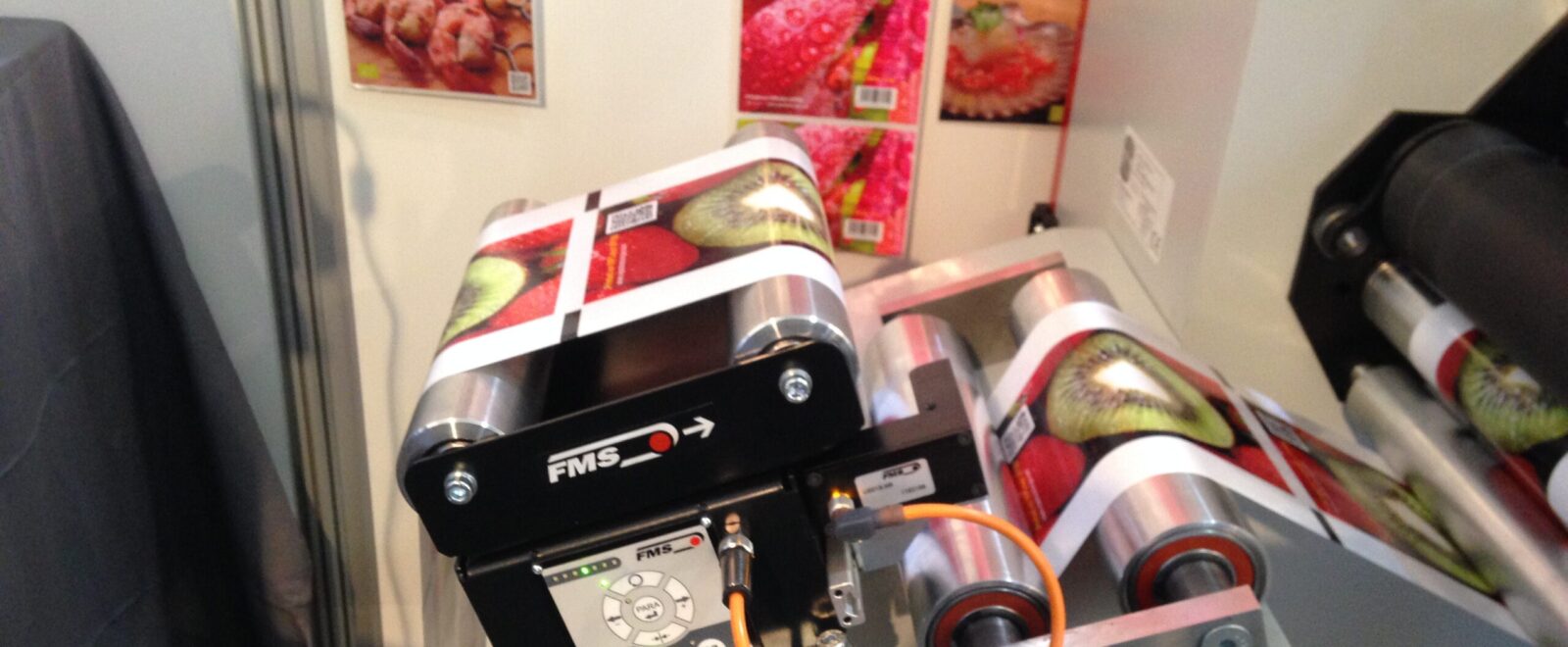

How web guide systems work

A web guide system typically consists of three key components:

1. Sensors

Sensors detect the position of the material edge or centreline. Different technologies exist depending on the application:

  • Optical sensors (light-based)
  • Ultrasonic sensors (sound-based)
  • Infrared sensors (heat-sensitive)
  • Special sensors for opaque or reflective materials

The sensor provides continuous feedback on the actual web position.

2. Controller

The controller processes sensor signals and decides how much correction is needed.
 A high-quality controller ensures:

  • Fast response
  • Stable correction
  • Minimal overshoot
  • Precise centring under varying speeds

This is similar in concept to encoder-based motion control, as explained in motion control systems.

3. Actuator and guiding mechanism

The actuator physically adjusts the web’s path:

  • Steering rollers
  • Pivot frames
  • Linear actuators
  • Edge guides

The actuator makes small, continuous adjustments to keep the material aligned. Together, these three components ensure that the web follows its intended path with high precision.

How web guide systems reduce waste

1. Preventing misalignment before it becomes waste

Even a small misalignment at the start of the process can lead to major defects downstream, especially in multi-stage lines. Web guide systems correct errors instantly, avoiding rework and material rejection.

This is particularly important in cable production processes using taping or wrapping materials. Misalignment can cause gaps or overlaps, weakening mechanical protection or insulation.

2. Improving consistency during speed changes

During acceleration, deceleration or tension fluctuations, webs tend to drift sideways.
 Combined with force measurement systems, web guide systems maintain stability even during dynamic speed changes.

This drastically reduces scrap during ramp-up and ensures cleaner production runs.

3. Reducing machine wear

Misaligned material increases friction on machine components such as rollers, nozzles, and guides. Over time, this creates:

  • Uneven wear
  • Increased maintenance
  • More frequent downtime
  • Higher replacement costs

Web guide systems protect the machinery by keeping material correctly aligned throughout the entire production line.

How web guiding improves product quality

1. Superior coating and insulation accuracy

In cable manufacturing, proper alignment is essential for coating or extruding insulation layers evenly over the conductor. If the material shifts laterally, insulation may appear thicker on one side or become inconsistent along the length.

Stable guiding ensures perfect alignment before and during the coating process.

2. Improved wrapping and taping precision

Some cables require additional protection layers, such as:

  • Aluminium foil
  • Steel tape
  • Fibre tape
  • Moisture barriers
  • Textile tapes

Accurate guiding ensures smooth, consistent tape application with no gaps or overlaps.

3. Higher print and marking quality

For cables requiring continuous print, stripe marking or coding, precise alignment ensures:

  • Crisp print quality
  • Accurate colour lines
  • Consistent identification across the product
  • Compliance with industry standards

4. Better winding and spooling results

Poor alignment results in telescoping, uneven edges and poor coil geometry. Web guide systems help ensure the material enters the winding section exactly centred, producing stable and uniform reels.

Integration with other motion and tension systems

Web guide systems work best when combined with:

  • Force measurement systems for stable tension control
  • Incremental encoders, such as the HOG10, for speed synchronisation
  • Absolute encoders for position feedback
  • Tacho generators for analogue speed control
  • Brake systems such as electromagnetic brakes

By integrating these technologies, Euro Hübner Benelux B.V. creates complete and stable motion control solutions for demanding industrial lines.

Industries that benefit from web guiding

Web guide systems are used across a wide range of industries, including:

  • Wire and cable manufacturing
  • Paper production
  • Film extrusion
  • Flexible packaging
  • Textile processing
  • Aluminium foil and laminate manufacturing
  • Battery foil and coating lines
  • Printing and converting industries

In each case, precise web alignment improves quality and reduces operating costs.

How to select the right web guide system

Choosing the correct system depends on several factors:

  • Web material (tape, film, foil, textile, cable wrap)
  • Web width and thickness
  • Line speed and acceleration behaviour
  • Tension range
  • Required accuracy
  • Environmental conditions
  • Mounting space and orientation

Euro Hübner Benelux B.V. provides technical assessment and support to ensure that each web-guiding solution matches the exact requirements of the production line.

Conclusion

Web guide systems are essential for maintaining high product quality, reducing scrap and ensuring stable material flow in modern manufacturing. Whether used for cable taping, foil coating, printing, packaging or insulation processes, accurate material alignment significantly increases production efficiency and reduces the risk of costly errors.

Together with tension control, encoder systems and braking technology, Euro Hübner Benelux B.V. provides complete motion control solutions that support reliable, precise and energy-efficient operation across multiple industries.
